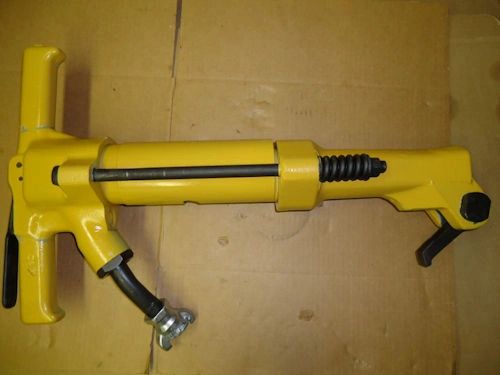

  • Hammer, Jack (Pneumatic Breaker) Heavy

    $45.00
    Enter Date Item Required: Availability must be confirmed by phone or email.

    Images and brands are for information purposes only; available models and configurations may differ.

    2 Sizes: 60/70 Lbs Class, 90 Lbs Class

                    Rental Rates

    • 3 Hour                                $     45.00
    • Day                                     $     75.00
    • Week                                  $    225.00
    • 4 Week                               $    675.00

    Related Rental Items:

    HI-DUTY Available in Moil Point, Narrow Chisel, and 3” Chisel, the HI-Duty tools are made from a beefier round steel and are recommended where a heavier paving breaker hammer is used or resistance to fatigue or prolonged life is desired.

    • Standard 3" Chisel, Hi-Duty ( 1-1/8" x 6" Hex) - Scaling Chisels are used for variety of purposes such as chipping off rust or scale from metal surfaces, general cleanup work on concrete, cleaning up castings, and wherever a wide blade can be used for removal of unwanted or excess materials. Scaling Chisels come in blade widths of 1-1/2”, 2”, 2-1/2”,and 3”.

    Accessories and Supplies  (Purchase)

    • Asphalt Cutter (1-1/8" x 6" Hex) - The 5” wide blade of the Asphalt Cutter is specifically designed so that the full width of the blade can be used to its full advantage for cutting asphalt. Rental availability limited to in-stock inventory.
    • Clay Spade (1-1/8" x 6" Hex) -  Clay Spades are thin and curved for cutting and removal of clay and hardpan. A heavier blade is furnished where usages are trenching, trimming, and general excavation. Rental availability limited to in-stock inventory.
    • Bush Head Tool (1-1/8" x 6" Hex) The Bushing Tool levels or roughens uneven floors or walls prior to resurfacing. Also used to remove excess material such as concrete seepage after the pouring of a form. Only available for purchase.
    • Driver, Ground Rod (1-1/8" x 6" Hex)  Rental availability limited to in-stock inventory.

    Product Description


    Choosing the Right Hammer

    Application

    Model

    Class

    Weight

    CFM

    Breaking light concrete and other light jobs

    Light Paving Breaker MPB-30A

    30#

    35.5 lbs

    37




    Concrete road breaking and other general demo work

    Medium Paving Breaker MPB-60A

    60#

    69.5 lbs



    48

    Heavy demo work breaking tough, reinforced concrete

    Heavy Paving Breaker MPB-90A

    90#

    92 lbs

    62


    Product Description 30/40 LB Breaker

    • One piece housing eliminates side rods, springs and backhead bolts.
    • Built-in lubricator helps assure adequate lubrication for increased durability.
    • Ball valve throttle shuts off instantly when released, provides responsive control.
    • Hardened alloy-steel cylinder resists wear, stands up to abuse.
    • Grooved piston distributes oil uniformly over cylinder wall, reducing wear and maintenance downtime.
    • Latch-type fronthead is foot-operated for rapid steel changing.

    Product Description 60/70 LB Breaker

    • State-of-the-art non-metallic materials
    • Internal lubricator
    • Drop-in valve cartridge
    • Powr-Strok™ piston cycle
    • One-piece breaker housing
    • Four-bolt backhead
    • Ergonomically designed
    • Unique metallurgy
    • Variable exhaust deflector
    • Patented anvil bushing

    Product Specifications (Specifications may change due to continuous product development)

    30/40 LB Breaker

    Model NumberIngersoll Rand - PB35A
    Part NumberPB35A
    MuffledNo
    Chuck Size Hex withCollar in1" x 4 1/4"
    Piston Stroke in6 2/5
    Bore in1 3/4
    Blows per Minute1250
    Length in25
    Weight lb43
    Air Consumption cfm48

    Model NumberIngersoll Rand - PB60
    Part NumberPB60
    Handle TypeT-Handle
    Chuck Size Hex with Collar in1 1/8" x 6"
    Weight lb60 Lbs Class
    Length in27  1/2
    Piston Bore inN/A
    Piston Stroke inN/A
    Blows per Minute1350
    Air Inlet Size (NPT) in3/4
    Muffler Kit Part NumberN/A
    Air Consumption cfm50

    Model NumberSullair - MPB9VA
    Part NumberMPB9VA
    Handle TypeT-Handle
    Chuck Size Hex with Collar in1 1/4" x 6", 1 1/8" x 6"
    Weight lb92.00
    Length in27  1/2
    Piston Bore in2  7/16
    Piston Stroke in5  9/32
    Blows per Minute1380
    Air Inlet Size (NPT) in3/4
    Muffler Kit Part NumberN/A
    Air Consumption cfm62
