  • Generator / Welder, 10.5-KW / 300-AMP

    $65.00
    Enter Date Item Required: Availability must be confirmed by phone or email.

    NOT SURE WHAT SIZE GENERATOR YOU NEED?   WATTAGE CALCULATOR

    Images and brands are for information purposes only; available models and configurations may differ.

    Rental includes up to 8 hours of meter use in a 24-hour time period. Fuel additional.

    Product Description

    Power, accuracy and efficiency aren’t the only things to consider when picking a welder. Noise levels shouldn’t be overlooked.

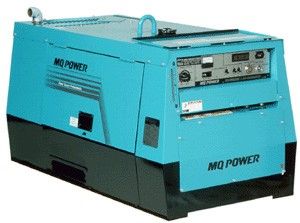

    Multiquip’s TLW-300SS is one of the quietest welder/generators available emitting an impressive 65dBA at 23 feet. The unit produces up to 300 amps as a welder and 10.5 kW as a generator and is fueled by a 19-horsepower Kubota D722 diesel engine. Voltage regulation is maintained at 1.5 percent and standard features include safety shutdowns, lifting bale, and external water, oil and fuel drains.

    Product Specifications (Specifications may change due to continuous product development)

    Performance Data

    • Prime Output KW (KVA): 10.5 Kw
    • Sound Level dB(A) - full load 23 feet: 65 dBA
    • Rated Voltage: 31.2
    • Current Range: 35-300 Amps
    • Duty Cycle: 100% to 280 Amps
    • Maximum Output - Amps: 300 Amps
    • Amperage: n/a
    • Continuous Amps: 43.7 x 2 /43.7
    • Frequency / Phase: 60 Hz/Single Phase
    • Duty: Continuous
    • Rated Speed: n/a


    Power Source

  • Displacement cu. in (cc): 719 cc
  • Engine Cooling System: n/a
  • Bore x Stroke (mm): n/a
  • Fuel Consumption - full load - gph (lph): 1.1 gph
  • Fuel Consumption - 3/4 load - gph (lph): 0.9 gph
  • Fuel Consumption - 1/2 load - gph (lph): 0.7 gph
  • Fuel Consumption - 1/4 load - gph (lph): 0.6 gph
  • Engine Coolant Capacity - gal (liters): .55 gal
  • Fuel Tank Capacity - gal (liters): 9.5 gal
  • Engine Design: 4-cycle, water cooled, swirl chamber
  • Engine Model: D722
  • Engine HP; rpm: 19 HP
  • Oil Capacity - gal (liters): .83 Gal
  • Engine Make: Kubota
  • Starting System: Electric
  • No. Cylinders: 3
  • Voltage/Phase: 120/240 V
  • Rated Output: 19 HP
    Dimensions
    • Overall Height - in. (cm): 32
    • Overall Length - in. (cm): 53
    • Operating Weight lbs. (kg): 882 lbs
