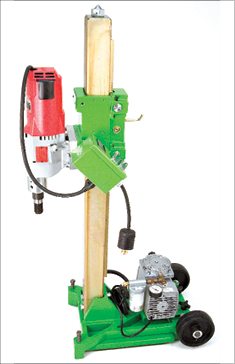

Drill, Core with Vacuum Rig
Images and brands are for information purposes only; available models and configurations may differ.
Product Description
The GR1 professional drill stand is designed for
medium to heavy-duty drilling applications.
Standard bit capacity of 10”. Maximum 16”
capacity with optional spacers.
Related Items:
Product Specifications (Specifications may change due to continuous product development)Standard Features
Column:
• Precision zinc plated square column 3” x 44” bolted to the base
• Built-in jack screw • Gear rack welded to column
Base:
• Cast aluminum 14” x 18”
• Web design for easy anchor bolt mounting
• 4 leveling screws for alignment on all types of surfaces
• Removable wheel assembly
• Slotted base can accept optional quick release vacuum assembly
• Accommodates vacuum pad without loss of machine stability
Roller Carriage:
• Precision rack and pinion gear system
• Adjustable stainlesssteelrollersforprecision alignment and smooth travel
• Single lever “slip through” handle
• Lock bolt for securing carriage in a position
• Control Panel with amp meter and 120V outlet for vacuum
• 32” carriage travel
Machine Dimensions:
Height 49”
Width 14”
Length 29”
Weight 148 lbs.
