RELATED EQUIPMENT
Cat Number | TPI | Length | Recommended Use |
WOOD CUTTING FAST BLADES | |||
1001 | 3 | 3.5 | Extra fast cutting in thick, nail-free wood |
1002 | 3 | 6 | Extra fast cutting in thick, nail-free wood |
GENERAL PURPOSE BLADES SPRING BACK | |||
1021 | 6 | 3.5 | Fast cutting for wood, composition materials, plastics, and non-ferrous metal. Spring back. |
1022 | 6 | 6 | Fast cutting for wood, composition materials, plastics, and non-ferrous metal. Spring back. |
1023 | 10 | 3.5 | Nail-embedded wood, composition materials, and plastics. Pipe, carbon steel, stainless steel: 1/s"-1 /4" / 3.2-6mm. Non-ferrous metal: 1/8"-1 /2"/3.2-13mm thick. Spring back. |
1024 | 10 | 6 | Nail-embedded wood, composition materials, and plastics. Pipe, carbon steel, stainless steel: 1/s"-1 /4" / 3.2-6mm. Non-ferrous metal: 1/8"-1 /2"/3.2-13mm thick. Spring back. |
GENERAL PURPOSE BLADES SPRING STEEL | |||
1031 | 6 | 6 | General roughing-in work in wood and nail embedded woods. |
1032 | 6 | 12 | Roughing-in work and nail-embedded wood. Fast cutting. Pipe, structural steel, stainless steel, non-ferrous metal: 3/V/ 5mm and thicker. |
WOOD CUTTING BLADE BI-METAL | |||
1041 | 6 | 6 | Wood cutting, tooth design, scroll cutting, vey fast cutting, long blade life. |
1042 | 6 | 12 | Roughing-in work and nail-embedded wood. Fast cutting. Pipe, structural steel, stainless steel, non-ferrous metal: 3/V/ 5mm and thicker. |
PLASTER CUTTING BLADE BI-META | |||
1051 | 5 | 3.5 | Plaster, plaster with metal lath, pasterboard. Cuts both forward and backward stokes. |
1052 | 6 | 5 | For plaster, plaster with metal lath, plasterboard. Cuts on forward/backward strokes. |
ROUGHING-IN BLADES | |||
1061 | 6 | 3.5 | Nail-free woods, plywood, asbestos and fiberboard. A general purpose economy type blade. |
1062 | 6 | 6 | Fast cutting for wood, composition materials, plastics, and non-ferrous metal |
1063 | 10 | 3.5 | Nail-embedded wood, plywood, insulating board and asbestos. Blade edge hardened. |
1064 | 10 | 6 | Nail-embedded wood, composition materials, and plastics. Pipe, carbon steel, stainless steel: 1/s"-1 /4" / 3.2-6mm. Non-ferrous metal: 1/8"-1 /2"/3.2-13mm thick |
1066 | 18 | 6 | Nail-embedded wood, opening wooden crates or boxes, removing wood siding or shingles. Teeth fully hardened. |
1067 | 24 | 3.5 | For light gauge non-ferrous metals. |
1068 | 24 | 6 | For light gauge non-ferrous metals. |
METAL SCROLL | |||
1102 | 18 | 3.5 | Scroll cutting metals. 18 gauge to 1/8". |
1103 | 24 | 2.5 | Contours metal under 18 gauge or 1/8" thick. |
WOOD SCROLL | |||
1121 | 6 | 3 5/8 | Contour cutting in all woods, nail-embedded wood and composition materials. |
1141 | 7 | 3 5/8 | Rough cutting irregular contours in wood, fiberboard, asbestos, and asphalt. Spring steel blade. |
1151 | 6 | 3 5/8 | Contour cutting in all woods, nail-embedded wood and composition materials. High speed delux steel blade. |
1201 | 6 | 3 5/8 | High speed steel, hollow ground. Delux type for fast, smooth finish scroll cuts in wood, plastics, formica and fiberglass. |
METAL SCROLL CUTTING BLADES BI-MET | |||
1161 | 10 | 3 5/8 | Scroll cutting wood, contours, nail embedded wood, plastics, non-ferrous metals. |
1162 | 14 | 3 5/8 | Scroll cutting metal 3/16" thru 1/4". |
METAL CUTTING BLADES | |||
1173 | 18 | 2.5 | Heavy gauge metals, conduit, pipe, channels and tubing. |
1174 | 18 | 4 | Heavy gauge metals, conduit, pipe, channels and tubing. |
2170 | 18 | 6 | Heavy gauge metals, conduit, pipe, channels and tubing. |
1175 | 24 | 2.5 | Metals lighter than 18 gauge sheet, trim and tubing. |
1176 | 24 | 4 | Metals lighter than 18 gauge sheet, trim and tubing. |
1177 | 32 | 2.5 | Very light gauge metals, sheet trim and tubing. |
1178 | 32 | 4 | Very light gauge metals, sheet trim and tubing. |
METAL CUTTING BLADES BI-METAL | |||
1181 | 14 | 4 | Metal 3/16" thru 1/4", conduit, tubing, channels, pipe, rubber, fiber |
1182 | 14 | 6 | Metal 3/16" thru 1/4", conduit, tubing, channels, pipe, rubber, fiber |
1183 | 18 | 4 | Metal 1/8" thru 3/16", conduit, tubing, channels, pipe. |
1184 | 18 | 6 | Metal 1/8" thru 3/16", conduit, tubing, channels, pipe. |
TUNGSTEN CARBIDE BLADES | |||
1400 | COARSE | 4 | Medium and coarse grits for cutting hardwood flooring, cast iron, stainless steel, fiberglass materials (polyesters, epoxies, melamines), ceramic tile, stone, slate, clay pipe, carbon, brick, plaster, marble and chalkboard. |
ALL PURPOSE BLADES BI-METAL | |||

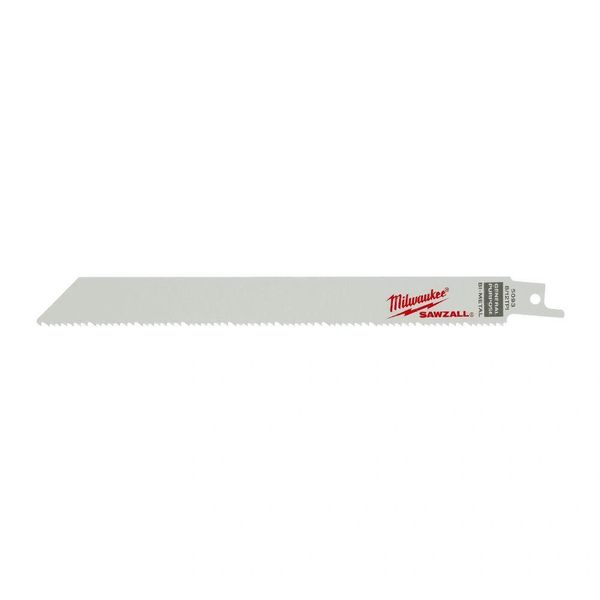

3093 | 10 | 8 | All woods, nail embedded, composition material, plastic, non-ferrous metals and cast iron. |
HEAVY DUTY BLADES | |||

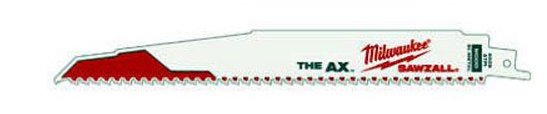

5026 | 9 | 5 | The Ax - Heavy demo work. |

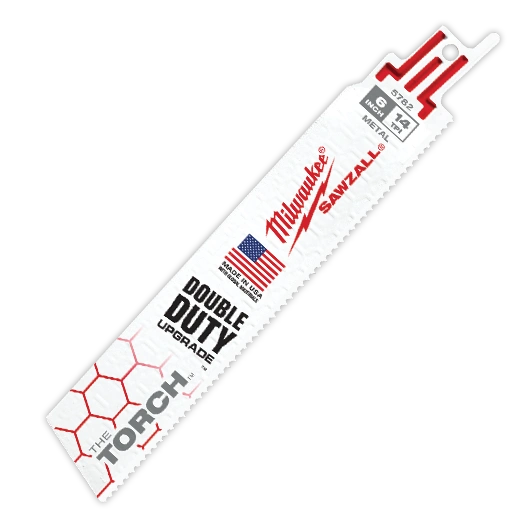

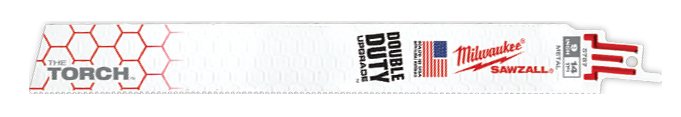

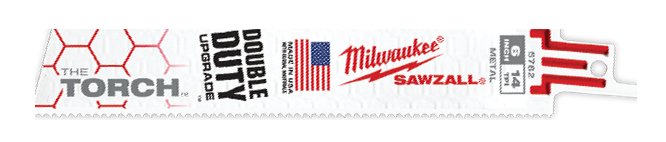

5782 | 6 | 14 | The Torch - Metal cutting. |
5787 | 9 | 14 | The Torch |
5789 | 12 | 18 | The Torc |
