Lift, Bucket (Rough Terrain)

Images and brands are for information purposes only; available models and configurations may differ.

Rental Rates

• 3 Hour              $      207.00
• Day                   $      345.00
• Week                 $    1,035.00
• 4 Week              $    3,105.00

Rental includes up to 8 hours of meter use in a 24-hour time period. A $250.00 security deposit is required at reservation or check-out. Fuel additional. Delivery Available.

Product Description: Genie Z-45

The advanced boom design that puts it all within reach.

Standard Features

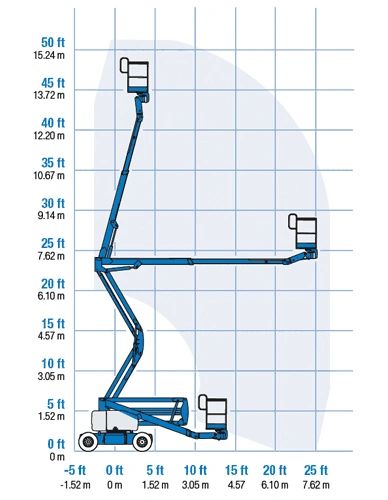

• Over 51 ft of working height (15.9 m)

• Over 24 ft (7.3 m) horizontal reach

• Up and over clearance of over 22 ft (6.7 m)

• 4 ft 6 in (1.37 m) turning radius

• 45 second lift speed to full height

• 500 lb (227 kg) lift capacity

• Oscillating axle on 4x4 models

• Dual fuel (Gas/LPG) or diesel engine options

• Fully proportional controls

• Hydraulic platform rotation

• 12V DC auxiliary power unit

• Drive enable system

• End mount platform on Z-45/25J models

• AC wiring to platform

• Tilt alarm

• Horn

• Hour meter

• Rough terrain air tires

Product Specifications (Specifications may change due to continuous product development)

Z-45/25 RT

Working height: 51 ft 8 in
Platform height: 45 ft 8 in
Height - stowed: 6 ft 10 in
Length - stowed: 18 ft
Width: 7 ft 4 in
Wheelbase: 6 ft 8 in
Ground clearance - center: 13 in
Ground clearance - min: 10 in
Platform length: 30 in
Platform width: 72 in
Horizontal reach max: 24 ft 6 in
Up and over clearance: 22 ft 6 in
Lift capacity: 500 lb
Turning radius - inside: 4 ft 6 in
Turntable rotation: 359°
Tailswing: zero
Platform rotation: 180°
Power source: Ford LRG 425 ERI Gas/LPG 82 hp (61 kw), Deutz Diesel F3L 1011 36 hp (27 kw), Perkins Diesel 104-22 50 hp (37 kw)
Drive speed - stowed: 4.8 mph
Drive speed - raised: 0.6 mph
Lift speed to full height: 45 sec
Controls: 12V DC proportional
Auxiliary power unit: 12V DC
Tires: 14 - 17.5
Gradeability - 4 x 4: 45%
Gradeability - 4 x 2: 30%
Hydraulic tank capacity: 25 gal
Fuel tank capacity: 14.3 gal
Weight - 4 x 4*: 13,800 lb
Weight - 4 x 2*: 13,600 lb

Z-45/25J RT

Working height: 51 ft 6 in
Platform height: 45 ft 6 in
Height - stowed: 6 ft 10 in
Length - stowed: 22 ft 3 in
Width: 7 ft 4 in
Wheelbase: 6 ft 8 in
Ground clearance - center: 13 in
Ground clearance - min: 10 in
Platform length: 30 in
Platform width: 72 in
Horizontal reach max: 25 ft 3 in
Up and over clearance: 22 ft 6 in
Lift capacity: 500 lb
Turning radius - inside: 4 ft 6 in
Turntable rotation: 359°
Tailswing: zero
Platform rotation: 160°
Power source: Ford LRG 425 ERI Gas/LPG 82 hp (61 kw), Deutz Diesel F3L 1011 36 hp (27 kw), Perkins Diesel 104-22 50 hp (37 kw)
Drive speed - stowed: 4.8 mph
Drive speed - raised: 0.6 mph
Lift speed to full height: 45 sec
Controls: 12V DC proportional
Auxiliary power unit: 12V DC
Tires: 14 - 17.5
Gradeability - 4 x 4: 45%
Gradeability - 4 x 2: 30%
Hydraulic tank capacity: 25 gal
Fuel tank capacity: 14.3 gal
Weight - 4 x 4*: 14,000 lb
Weight - 4 x 2*: 13,800 lb
