Forklift, Warehouse
Images and brands are for information purposes only; available models and configurations may differ.
Rental includes up to 8 hours of meter use in a 24-hour time period. Fuel additional.
Delivery Available. See Delivery and Setup Rates.
Product Description

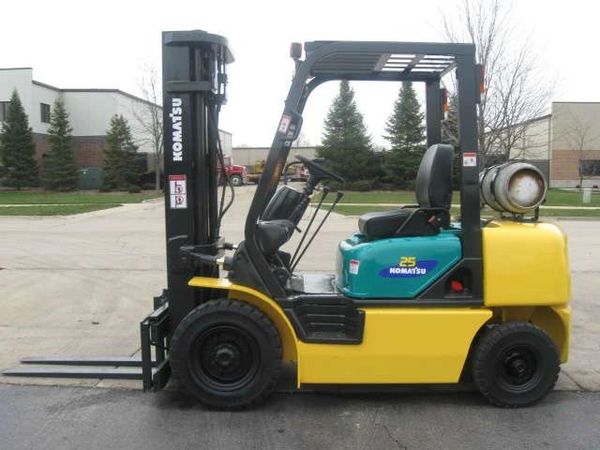

Komatsu FG25C-12STANDARD EQUIPMENT
» New low profile dash display – Fuel Gauge, Water
Temperature Gauge and Hour Meter
» Indicator lights – Neutral/Return to Neutral, Low Oil
Pressure, Low Battery/Alternator, Hydraulic Lock (Operator
Presence), Check Engine Warning, Maintenance Error Code
» Drawbar Pin in Counterweight
» Electronic Ignition, Anti-Restart Ignition Switch
» Fully Hydrostatic Power Steering
» Long-Life Headlights (OHG Mounted)
» LED Tail/Stop/Rear Turn Lights
» High-Mount Air Intake
» Horn with Actuator on Center of Steering Wheel
» Three-Piece Overhead Guard
» Komfort Seat and Operator Restraint System with Lap Belt
» Three-Function Hydraulic Control Valve
» Parking Brake with Double-Action Release
Product Specifications (Specifications may change due to continuous product development)
Power Type: Gasoline Gasoline
Operation Type Sit-Down
Capacity @ 24 in. (600 mm) load center* lbs. (kg) 4,000 (1,810)
Load distance from center axle (2-stage) in. (mm) 16.9 (430)
Wheelbase in. (mm) 55.1 (1,400) 55.1 (1,400)
WEIGHT: Service weight (includes 2-stage std. mast & forks) lbs. (kg) 7,300 (3,310)
Axle Loading:
Loaded Front lbs. (kg) 9,820 (4,455)
Rear lbs. (kg) 1,480 (670)
Unloaded Front lbs. (kg) 2,820 (1,280)
Rear lbs. (kg) 4,480 (2,030
